Watering Irrigation Tuya System for Farms Agricultural Pipe Kits Drip Tape Fitting Valve Connectors Micro Spray Flat Rain Hose
Material: Plastic
Type: Other Watering & Irrigation
Place of Origin: Shandong, China, Shandong
Model Number: 22 28 32 mm
Brand Name: Yibiyuan
Product name: Irrigation rain tape
Application: Agricultural Farmland Irrigation System
Usage: Water-saving Irrigation System
Keyword: Irrigation Equipment
Color: Black
Diameter: 22 28 32 mm
Feature: Durable
MOQ: 1000m
Thickness: 0.2/0.3/0.4mm
Product Description
Rain Hose Irrigation System
Sprinkler Hose with Holes

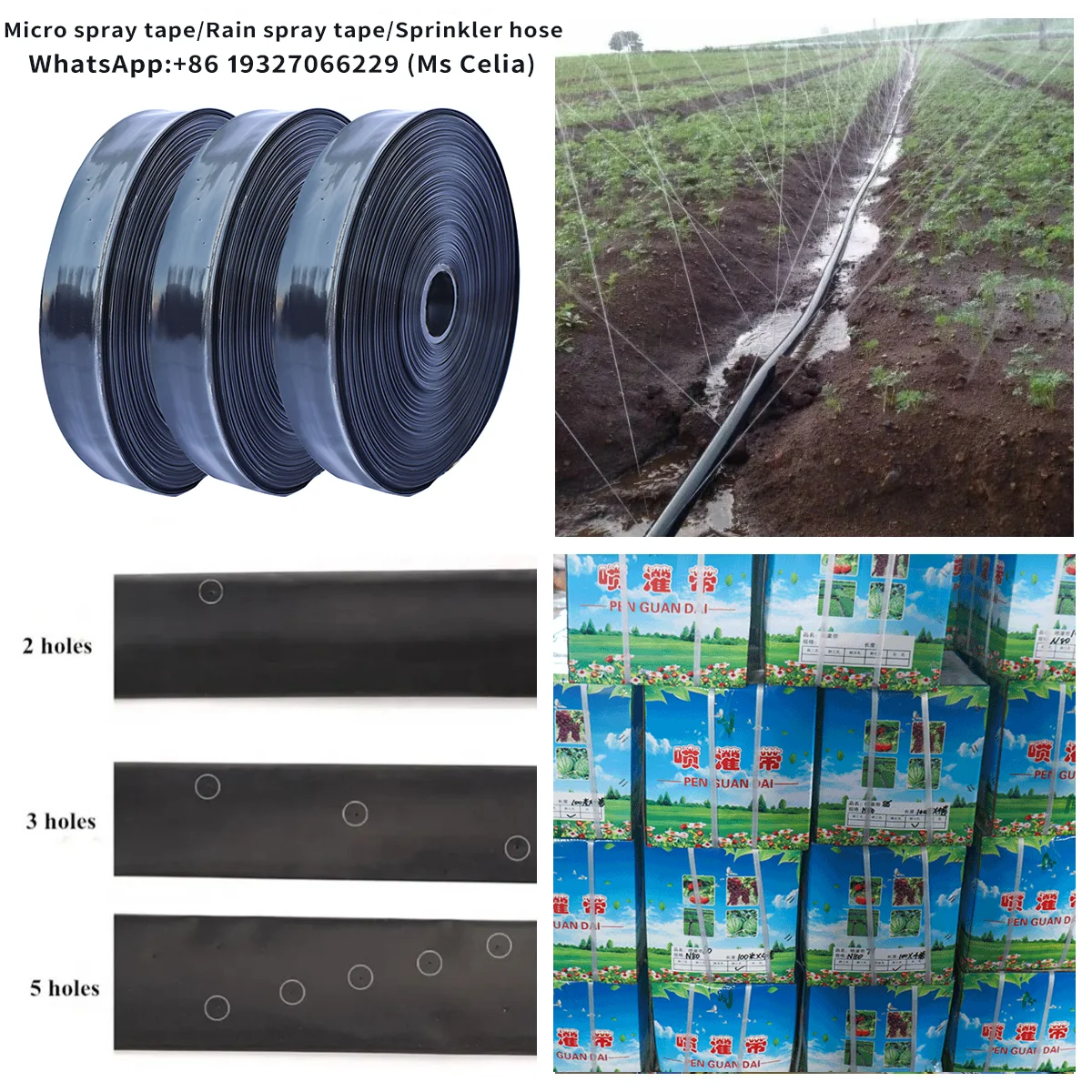

Product description: Spraying holes on the sprinkler hoses are precisely puched with laser. Currently, 3-hole, 5-hole and 7-hole per set are available, varying with hose diameter. Depending on the water pressure and hose diameter, sprinkler hoses with holes can water about 2~12 meters wide along the hose. Also, you can easily adjust the spray radius by turning down the water pressure.
Product description: Spraying holes on the sprinkler hoses are precisely puched with laser. Currently, 3-hole, 5-hole and 7-hole per set are available, varying with hose diameter. Depending on the water pressure and hose diameter, sprinkler hoses with holes can water about 2~12 meters wide along the hose. Also, you can easily adjust the spray radius by turning down the water pressure.
|
Width
(mm)
|
Dia
(mm)
|
Wall thick
(mm)
|
Roll Weight
(kg)
|
Roll Length
(m)
|
||
|
35
|
22
|
0.18
|
10.5
|
1000
|
||
|
45
|
28
|
0.18
|
13.5
|
1000
|
||
|
50
|
32
|
0.20
|
20
|
1000
|
||
|
65
|
40
|
0.23
|
5
|
200*5
|
||
|
80
|
50
|
0.30
|
5
|
100*4
|
||
|
100
|
63
|
0.30
|
6
|
100*3
|
||
|
Customised Design
|
0.4
|
|||||
Products Features
When irrigation by PE micro spray tape, it is similar to fin rain to moisten the crops. Spraying water with litter impact.And even without harming the crops. Especially, it can significantly reduce the humidity in the greenhouse and reduce the disease of crops.
Micro-spraying hose is a new type of micro irrigation equipment, also known as “sprinkler irrigation”, “micro-spraying hose”, “spray hose”, “spray pipe”, “porous hose”, etc.
The working principle is to bring the water pressure to the field through water pipe and micro nozzle, and through the water outlet hole on micro-spraying hose, under the action of gravity and air resistance, it forms a drizzle-like spraying effect.
The water outlet holes of micro-spraying hose are mixed in multiple air groups, and are arranged according to a certain distance and a certain rule, such as oblique five holes, lateral tee holes, horizontal three holes, left and right holes and no holes, etc.
the water outlet hole generally adopts mechanical drilling, start drilling and laser drilling, the aperture is 0.1~1.2mm, and the empty shape is round. The main models are: N30, N45, N50, and N65.
Micro-spraying hose is a new type of micro irrigation equipment, also known as “sprinkler irrigation”, “micro-spraying hose”, “spray hose”, “spray pipe”, “porous hose”, etc.
The working principle is to bring the water pressure to the field through water pipe and micro nozzle, and through the water outlet hole on micro-spraying hose, under the action of gravity and air resistance, it forms a drizzle-like spraying effect.
The water outlet holes of micro-spraying hose are mixed in multiple air groups, and are arranged according to a certain distance and a certain rule, such as oblique five holes, lateral tee holes, horizontal three holes, left and right holes and no holes, etc.
the water outlet hole generally adopts mechanical drilling, start drilling and laser drilling, the aperture is 0.1~1.2mm, and the empty shape is round. The main models are: N30, N45, N50, and N65.
Related Products
Our Advantages
Company Profile
FAQ
Q: Are you a manufacturer?
A: Yes, Yibiyuan is a leading manufacturer of irrigation and hydroponics products located in China.
Q: What is your minimum order quantity?
A: The MOQ for sprinkler hose is 1000 meters.
Q: What’s the lead time of the sprinkler hose with holes?
A: The lead time is about 3~15 days.
Q: I haven’t done business with you before, how can I trust your company?
A: You can watch the video introduction verified by the world-leading inspection company Intertek. Or assign your agent to visit our factory personally.
Q: Can you send me some samples before the mass order?
A: Yes, we’re glad to offer you some sprinkler hose samples, though you need to cover the shipping cost.
A: Yes, Yibiyuan is a leading manufacturer of irrigation and hydroponics products located in China.
Q: What is your minimum order quantity?
A: The MOQ for sprinkler hose is 1000 meters.
Q: What’s the lead time of the sprinkler hose with holes?
A: The lead time is about 3~15 days.
Q: I haven’t done business with you before, how can I trust your company?
A: You can watch the video introduction verified by the world-leading inspection company Intertek. Or assign your agent to visit our factory personally.
Q: Can you send me some samples before the mass order?
A: Yes, we’re glad to offer you some sprinkler hose samples, though you need to cover the shipping cost.
