Rain Hose Irrigation System
1. Product description:
Spraying holes on the sprinkler hoses are precisely puched with laser. Currently, 3-hole, 5-hole and 7-hole per set are available,
varying with hose diameter. Depending on the water pressure and hose diameter, sprinkler hoses with holes can water about 2~12
meters wide along the hose. Also, you can easily adjust the spray radius by turning down the water pressure.
|
Width
(mm)
|
Dia
(mm)
|
Wall thick
(mm)
|
Roll Weight
(kg)
|
Roll Length
(m)
|
|
35
|
22
|
0.18
|
10.5
|
1000
|
|
45
|
28
|
0.18
|
13.5
|
1000
|
|
50
|
32
|
0.20
|
20
|
1000
|
|
65
|
40
|
0.23
|
5
|
200*5
|
|
80
|
50
|
0.30
|
5
|
100*4
|
|
100
|
63
|
0.30
|
6
|
100*3
|
irrigation”, “micro-spraying hose”, “spray hose”, “spray pipe”, “porous hose”, etc.

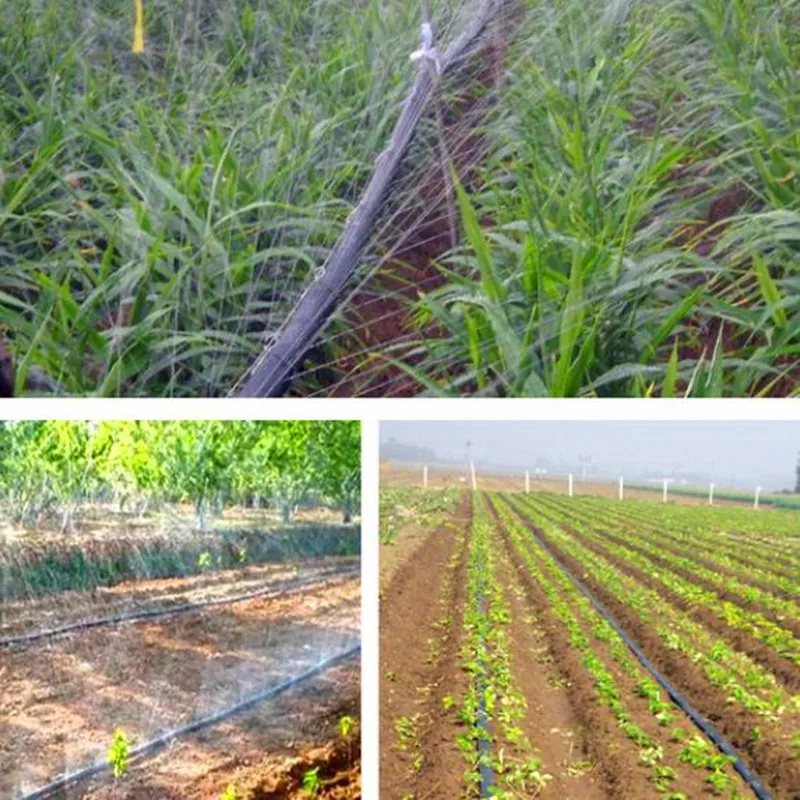

The working principle is to bring the water pressure to the field through water pipe and micro nozzle, and through the water outlet hole on micro-spraying hose, under the action of gravity and air resistance, it forms a drizzle-like spraying effect.
The water outlet holes of micro-spraying hose are mixed in multiple air groups, and are arranged according to a certain distance and a certain rule, such as oblique five holes, lateral tee holes, horizontal three holes, left and right holes and no holes, etc.

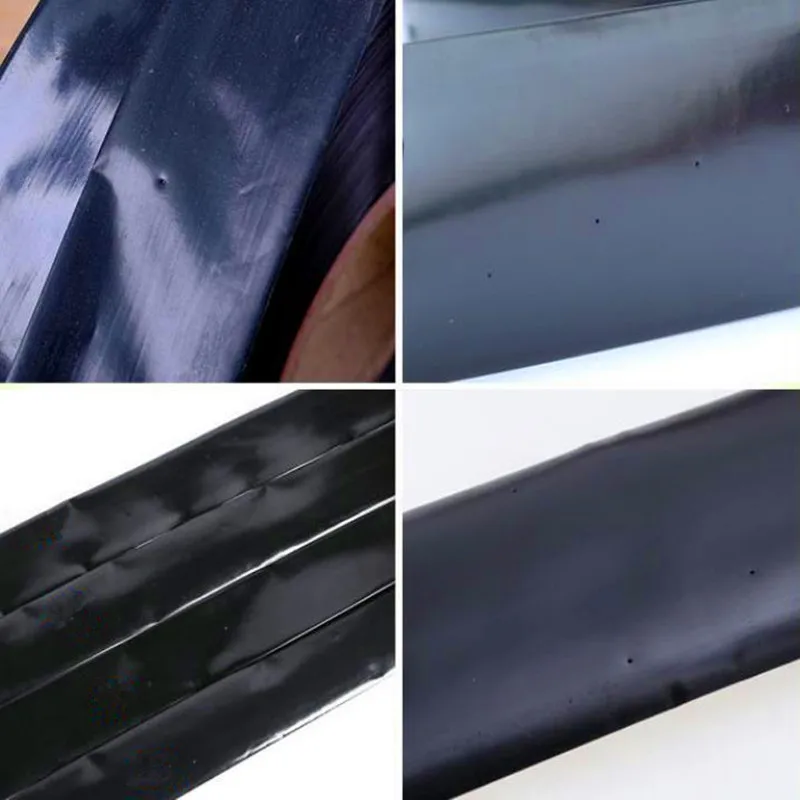

the water outlet hole generally adopts mechanical drilling, start drilling and laser drilling, the aperture is 0.1~1.2mm, and the empty shape is round. The main models are: N30, N45, N50, and N65.
Excellent emission uniformity and anti-clogging property.
100% PE raw material ,anti-UV,anti-corrosion,and durability .
Extruded with dripper inside,light weight and packed by roll,good for transportation.
Suitable for large farm application.
Precision performance Cv ≤ 5%.Drip tape can be installed easily either above or below ground. It is designed for use in vegetable gardens, narrow rows of vegetation, and for row crops. Most often, a vegetable garden or vegetable crops are planted in parallel rows. This makes the layout of a drip tape very easy.
To successfully use drip tape for seed germination, the soil type, the drip tape outlet spacing, and the depth and spacing between the drip tape laterals should be determined first. The drip tape must be close enough to the surface and the drip outlets must be in close enough spacing to germinate the seeds. For example, drip tape 4 to 5 inches deep was successfully used to germinate onion seeds in silt loam soil, while drip tape with 12 inch spacing failed to uniformly germinate the same crop.
When using a drip tape system, the right amount of water must be applied. If more water is applied than the plants need, most of the benefits that the drip tape system provides will be negated. The soil will be excessively wet, promoting disease, weed growth, and nitrate leaching.
Option one for large coils: Mount the drip tape spool on a stand at the end of the row, tie the stand to the ground and pull the drip tape close to the ground.
Step 1: Install a drip zone or control valve that includes remote control valve or battery operated controller, filter, pressure
regulator, and pipe adapter to PVC or poly tubing. We highly recommend using a 10 to 15 PSI pressure regulator.
Step 2: Lay out the main lateral or supply line, PVC pipe, or poly tubing perpendicular to the rows.
Step 3: Place the drip tape at the layout or spacing selected (see the two options suggested above).
Spacing suggestions: Lay out the drip tape at the center of the vegetable row with one line per row, or one line between every two rows if the bed is less than 2′ wide.
A: Yes, Yibiyuan is a leading manufacturer of irrigation and hydroponics products located in China.
Q: What is your minimum order quantity?
A: The MOQ for sprinkler hose is 1000 meters.
Q: What are your payment terms?
A: Generally, we accept T/T payment, 30% in advance and the rest before shipment. Please contact your sale representatives for details.
Q: What’s the lead time of the sprinkler hose with holes?
A: The lead time is about 7~15 days.
Q: I haven’t done business with you before, how can I trust your company?
A: You can watch the video introduction verified by the world-leading inspection company Intertek. Or assign your agent to visit our factory personally.
Q: What’s your shipment terms?
A: We generally go FOB Qingdao or Ex Works. You can talk to your sales rep for other options.
Q: Can you send me some samples before the mass order?
A: Yes, we’re glad to offer you some sprinkler hose samples, though you need to cover the shipping cost.
